AC220V Spinal Balance Detection System ISO9001 Automatic Calibration

Four main advantages

1.Automatic calibration

2.Voice prompt

3.Data collection

4.Automatic capture

Detection process

Personnel information scan code entry

general observation

Electronic angle detection

Scan code input

Plantar pressure detection

Generate report

Platform core functions

Information entry query

Screening data push

Screening data BI big data analysis

Screening data report management

Screening equipment operation and maintenance

log in management system

Platform account: account background allocation, easy to import and view data

School account: account background allocation, easy to import and view data

Parent Account: View Student Screening Status

Guest account: View public platform data to facilitate popular science education

National Adolescent Foot and spine health screening big data platform

Platform overview

The National Youth Spine Screening Health Big Data Cloud Platform realizes the systematization, informatization and dataization of the spine of students through informatization technology.

1.Systematic visualization of screening data: Visually display screening data through the BI big data visualization system

2.Screening data tabular and analyzable: through tabular analysis of screening data in different dimensions

3.Improve screening efficiency and shorten confirmation time: Visually display screening data through BI big data visualization system

4.Improve data query efficiency and reduce labor costs: Quickly view screening data by searching and setting screening conditions

5.Facilitate the interaction of parents and school platform information: through WeChat public account, SMS and other forms to realize the interaction of screening data, online science popularization

6.The platform can be expanded to create a big data cloud platform for adolescent health: it can connect with third-party medical education and government platforms

Six core technologies:

Complete projectsIt:It can measure the range of motion/curvature of the head, chest, waist and back, and judge the foot shape according to the distribution of the plantar pressure, and evaluate the degree of scoliosis,and make supplementary diagnosis of 38 indicators of 9 major parts neck, shoulders, chest, waist, back, basin, legs, knees, feet.

Fast speed:On average, 30 people are screened in one hour, and the report will be issued after the inspection. 10 devices can screen 2,400 people a day.

Accurate data:After the system recognizes that the human body has reached a state of balance, it will automatically measure to ensure that the data is collected at the best time for the body to balance, and to avoid environmental factors and human factors affecting the measurement accuracy.

Easy operation:One-click scan code can import information, voice broadcast detection progress, the system automatically completes the missing information, simplifies human-computer interaction, and avoids human error.

Big data cloud platform:The detection data can be uploaded to the cloud platform, and cloud storage, cloud computing, cloud analysis, and big data analysis can be performed.

Personalization:Provide scientific basis for scanning the soles of feet and customizing personalized biochip insoles for patients with flat feet and high arched feet.

Main performance indicators

Angle measurement range: left 0~90°, right 0~90°, forward 0~90°, backward 0~90°, tolerance ±2°.

Foot measurement: The foot measurement device has an image display function, which can generate left and right foot images according to different human foot stress distribution trends.

Scope of application: This product is used for the detection of human spine curvature and balance ability.

Structural composition and working principle

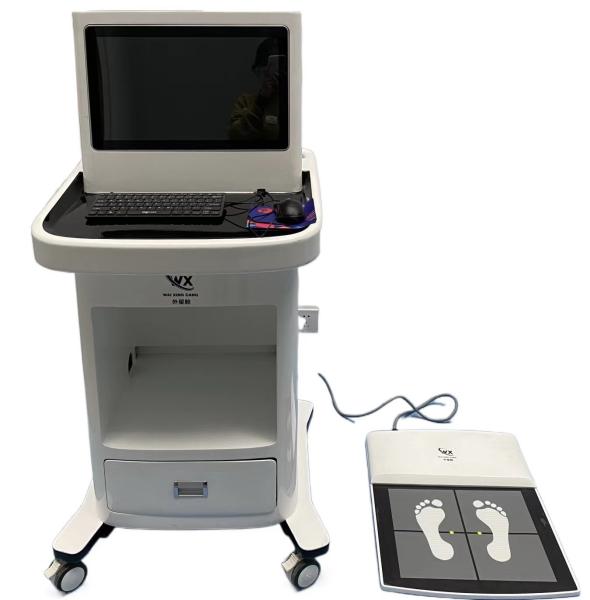

Structural composition: WJC-9010 consists of a main console, a spinal measurement device, and a sole measurement device.

How it works:

The degree of spinal curvature is determined by measuring the relative inclination of the back.

The standing posture of the human body is judged by measuring the distribution ratio of the point of contact on the sole of the foot.

Measurement item

Trunk range of motion measurement

Kyphosis measurement

Scoliosis measurement

Flat feet, high arched feet measurements
